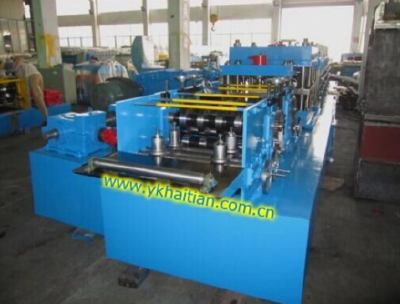

Crash barrier W beam rail forming machine

Crash barrier W beam rail forming machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: Dalian port
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2003-10-19
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  15.0m*1.5m*1.2m
  • Place of Origin:  Liaoning, China
  • Brand Name:  Haitian
  • Model Number:  310
  • Weight: 15000.000 kg

1

Material Width

500-1000mm

2

Effective Wi dth

480-680mm

3

Thickness of Coil

3-4mm

4

Application

Highway Guardrail

5

Estimated Dimension

15000mmX1800mmX1200mm

6

Total Weight

15 Tons

7

Main Power

30 KW

8

Decoiler

Manual or Hydraulic Decoiler

9

Inner Diameter

508mm

10

Outer Diameter

1200mm

11

Loading Weight

15T

12

Forming Speed

6—10m/min

13

Forming Station

12-15

14

Bracket

Welded with 36 # I-steel

15

Material of Shaft

High Grade 45# Steel with 1st Rough Finished and

then 2th Refined Finished

16

Diameter of the Roll

100mm

17

Material of Roller

High Quality

CGr15 Quenched HRC58-62  °

18

Processing Technology

Rough Processing ---Refined Processing--Hard Chromium Plating.

19

Material of Rack

Complete Welded Structure of A3 Steel

Plate 20 mm Thickness

20

Transmission

Chain or Gear Box

21

Material of cutting blade

Cr12 with Quenched Treatment 60-62  °

22

Cutting system

Hydraulic Stop or Tracking Cutting

23

Voltage

380V/50HZ/3 Phase or as Customer Require


  • Size:  15.0m*1.5m*1.2m
  • Place of Origin:  Liaoning, China
  • Brand Name:  Haitian
  • Model Number:  310
  • Weight: 15000.000 kg
