- Size: 6400mm*1300mm*1200mm
- Place of Origin: Liaoning, China
- Brand Name: Haitian
- Model Number: 850&850
- Weight: 5000.000 kg

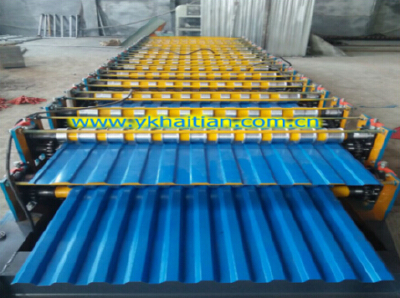

No. | Main parameters of Double Deck Corrugated And Ibr Roll Forming Machine | |
1 | Suitable to process | Colored Steel plate, galvanized board, Aluminum plate |
2 | Control system | PLC control |
3 | Productivity | Up layer: 0-3m/min, Down layer: 8-10m/min |
4 | Width of the raw material | 1000mm |
5 | Thickness of the plate | 0.2-0.6mm |
6 | Rollers | Up layer:12 rows, Down layer:15 rows |
7 | Diameter of the rollers | Φ80mm |
8 | Rolling galvanization thickness | 0.05mm |
9 | Material of the cutting blade | Cr12 |
10 | Dimension | 5.6*1.3*1.3m |
11 | Weight | About 4.0T |
12 | Voltage | 380V 50Hz 3phases |
13 | Power | 4+4kw |
