- Size: 8.7*1.55*1.71m
- Place of Origin: Liaoning, China
- Brand Name: Haitian
- Model Number: 840&850
- Weight: 6200.000 kg

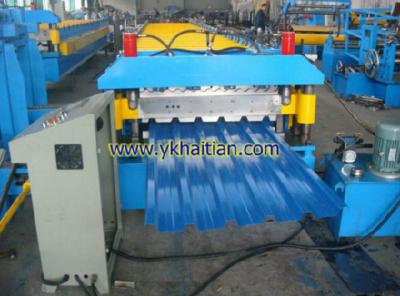

No. | Main parameters of Stainless steel Double Layer Sheet Roof Tile Making Machinery | |
1 | Suitable to process | Stainless steel Colored Steel plate, galvanized board, Aluminum plate |
2 | Control system | PLC control |
3 | Productivity | Up layer: 0-3m/min, Down layer: 10-15m/min |
4 | Width of the raw material | 1000mm |
5 | Thickness of the plate | 0.3-1.0mm |
6 | Rollers | Up layer:15 rows, Down layer:18 rows |
7 | Diameter of the rollers | Φ80mm |
8 | Rolling galvanization thickness | 0.05mm |
9 | Material of the cutting blade | Cr12 |
10 | Dimension | 8.7*1.55*1.71m |
11 | Weight | About 6.5T |
12 | Voltage | 380V 50Hz 3phases |
13 | Power | 7.5+4kw |
